GEMBATTERY GzS Series: High-Reliability Flooded Tubular Battery for Power Plant & Power Station Applications

In the demanding environment of a power plant or electrical substation, backup power is not a convenience—it is a safety-critical necessity. When the grid trips, protection relays, breaker trip coils, SCADA systems, and emergency lighting must continue to operate flawlessly. The battery bank that powers these systems is judged not by its performance on day one, but by its ability to deliver reliable power after years of silent float service, often by a moment of violent high-current discharge. GEMBATTERY GzS Series flooded tubular batteries are engineered precisely for this duty: stationary energy storage for power plants, power stations, and utility substations where failure is simply not an option.

The OPzS Standard: Built for Critical Infrastructure

GEMBATTERY GzS Series batteries, known globally as OPzS (Ortsfest Panzerplatte – stationary tubular plate) cells, represent the industry standard for high-reliability stationary lead-acid storage. These are flooded (vented) batteries featuring a liquid electrolyte of dilute sulfuric acid, accessible for periodic maintenance and inspection—a design philosophy that prioritizes transparency, verifiability, and maximum service life over sealed convenience.

The GzS Series is manufactured in compliance with DIN 40736, IEC 60896-11, and IEC 61427 standards, ensuring compatibility with international utility specifications and tender requirements. Available in 2V configurations ranging from 200 Ah to 3000 Ah, these cells can be connected in series to form 110V or 220V DC battery banks, the standard voltages for substation control power systems.

Tubular Plate Technology: The Key to Longevity

At the heart of every GEMBATTERY GzS cell lies the tubular positive plate—the most durable construction in lead-acid technology. Active material is encapsulated within a gauntlet of woven polyester or glass fiber, supported by a corrosion-resistant spine cast from a proprietary Pb-Ca-Sn-Ag alloy.

This architecture delivers two decisive advantages for power plant applications. First, the gauntlet prevents active material shedding, the primary failure mechanism that retires flat-plate batteries prematurely. Under the repeated deep discharges characteristic of emergency backup duty, tubular plates maintain structural integrity where conventional designs would degrade. Second, the tubular geometry exposes approximately 60% more working surface area than a flat plate of the same footprint, maximizing capacity delivery during high-current discharges.

Negative plates employ flat-pasted construction with high-purity lead alloys, while microporous PVC-SiO₂ separators ensure excellent electrolyte permeability and low internal resistance. The transparent SAN container allows visual inspection of electrolyte levels and plate condition—a feature sealed batteries cannot offer.

Proven Performance in Power Station Environments

Power plant battery duty is unique: years of quiet float operation punctuated by rare but extreme demands. When a fault occurs, the battery must deliver high currents for breaker tripping and then sustain control loads for hours until auxiliary power is restored.

GEMBATTERY GzS Series is engineered for exactly this profile. The flooded tubular construction provides a design float service life of 20 years at 20°C, substantially longer than AGM or standard gel alternatives. Under cyclic conditions, these batteries deliver 1500–1800 cycles at 80% depth of discharge, ensuring reliability even in hybrid or renewable-coupled power plant configurations.

The wide operating temperature range of -45°C to +60°C makes GzS batteries suitable for installations from arctic substations to desert power stations. Low self-discharge (approximately 2–4% per month at 20°C) ensures that the battery remains charged and ready even after extended periods without recharge.

Critically, the flooded design allows cell-by-cell verification of state of health. Technicians can measure specific gravity, voltage, and impedance trends—providing documented evidence of capacity and remaining life that sealed batteries simply cannot match. For utilities with trained maintenance staff, this transparency is invaluable for regulatory compliance and long-term asset management.

Safety and Reliability: The Power Plant Priority

GEMBATTERY places the highest priority on safety in power plant and power station applications. The GzS Series features:

Flame-retardant construction – High-strength ABS or SAN containers meet UL94 HB/V-0 standards, providing passive fire resistance in equipment rooms.

Robust mechanical design – The tubular plate structure resists vibration and mechanical stress, important in turbine halls and switchgear rooms.

High short-circuit capability – Large-capacity cells deliver the high currents needed for breaker operation without voltage collapse.

Proven field reliability – Flooded tubular OPzS batteries have served in utility substations for decades; their aging behavior and failure modes are well-documented, allowing predictable maintenance planning.

Applications Across Power Generation and Distribution

GEMBATTERY GzS Series batteries are specified for a comprehensive range of power industry applications:

Power Plant Control Power – DC systems for protection relays, breaker trip coils, and SCADA equipment

Substation DC Banks – 110V and 220V systems for switchgear operation and protection

Black-Start Capability – Initial power for auxiliary systems during grid restoration

Emergency Lighting – Safety illumination in turbine halls, control rooms, and switchyards

Telecom & BTS Backup – Reliable power for communication systems at generation sites

Renewable Energy Integration – Storage for hybrid solar/wind power plants requiring utility-grade reliability

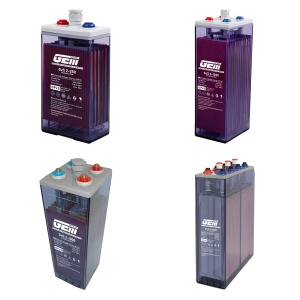

Each GEMBATTERY GzS cell is identified by a model number reflecting its capacity: GzS 2-200 through GzS 2-3000, covering 200 Ah to 3000 Ah in 2V configurations.

Maintenance: The Trade-Off for Maximum Life

Unlike sealed VRLA batteries, GEMBATTERY GzS Series requires periodic electrolyte topping-up—typically once every 1–2 years under normal operating conditions, depending on temperature and charge voltage. This maintenance task, while requiring trained personnel and a watering log, is the price of the longest verifiable service life in lead-acid technology.

For utilities with established maintenance protocols, this trade-off is overwhelmingly favorable. Flooded tubular cells can be inspected, measured, and proven—their condition is transparent, not sealed behind a valve. When properly maintained, GEMBATTERY GzS batteries deliver decades of reliable service, making them the most cost-effective long-term solution for critical power infrastructure.

Conclusion

GEMBATTERY GzS Series flooded tubular batteries embody the reliability, durability, and transparency that power plants and substations demand. With 20-year design life, tubular plate construction, and compliance with international standards, GzS cells provide the foundation for safe, resilient DC power systems. For utility engineers, project developers, and facility managers who prioritize verifiable performance and long-term value over sealed convenience, GEMBATTERY GzS Series represents the proven choice for powering critical infrastructure.
